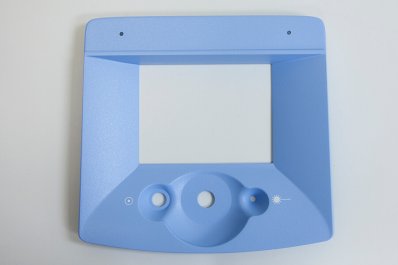

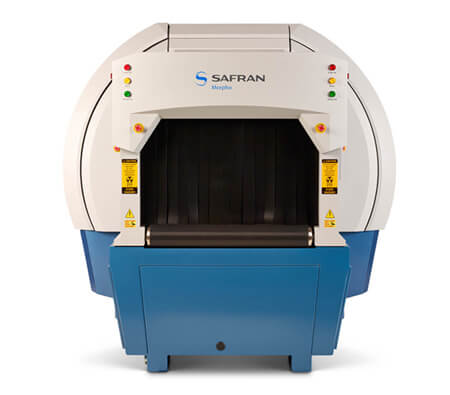

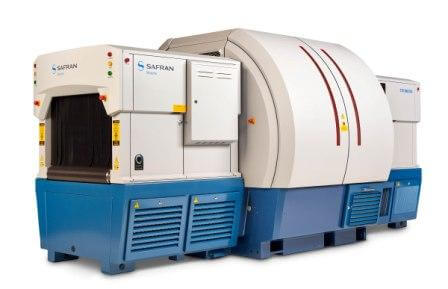

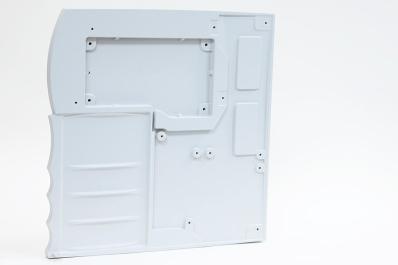

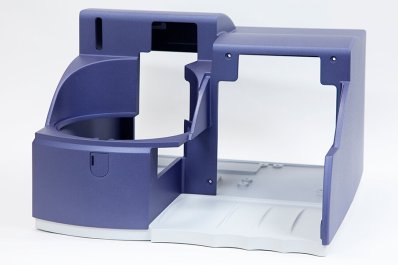

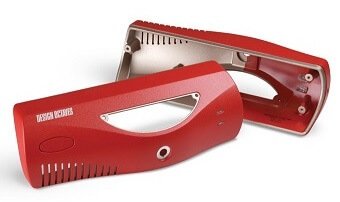

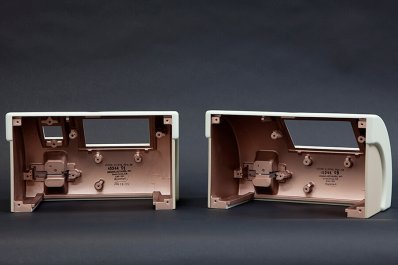

Airport security luggage scanning system. Design Octaves Reaction Injection Molding large bezel with silk screen logo. Steel weldment to RIM conversion saves weight and increases ease of access for maintenance. Side view of airport luggage scanner. Design Octaves RIM bezel with catalyzed ink for silk screen logo. Design Octaves provides bezel ready for installation with all status lights, stop switches and wiring harness installed.Design Octaves Sample Parts in 3mm and 6mm nominal wall thickness. Sample parts feature catalyzed urethane paint, silk screen logo, overmolded steel insert, overmolded brass threaded inserts, UL approved EMI/RFI shielding, injection molded lightpipe, vents and label recess. Design Octaves Enclosure for single molecule, real-time (SMRT) sequencing. Enclosure features two tone catalyzed paint, silk screen logo, venting and touch screen bezel. On the inside RIM parts include work surface and door rails.Analytical instrument featuring Design Octaves RIM enclosures. Multiple part enclosers features three tone paint, two color silkscreen logo and injection molded components. Life Sciences Instrument featuring Design Octaves Reaction Injection Molded Enclosure, Design Octaves Painted Injection Molded components and three color silk screen logos.Three part Design Octaves RIM molded enclosure featuring two stage, two tone catalyzed metallic paint and injection molded trim. This project included extensive development of paint color and process as well as custom packaging for worldwide shipping. Chip Emulation enclosure consisting of 22 individual parts manufactured by Design Octaves. Parts feature several color options, automotive grade two stage paint, two color silkscreen.RIM (Reaction Injection Molded) enclosure and applique featuring two tone paint, label recess and silk screen logo. Medical Robot System featuring Design Octaves Reaction Injection Molding Enclosures and components. System includes base unit, robot head and cable/hose management. Two tone catalyzed paint throughout as well as catalyzed silkscreen logos.Close up view of Medical Robot featured in previous photo. Robot head features magnetic door molded with the Design Octaves RIM process. Two tone analytical enclosure featuring catalyzed urethane paint, silkscreen logo and molded in brass threaded inserts.Medical Cart featuring Design Octaves RIM components. Life Sciences instrument with Design Octaves RIM (Reaction Injection Molded) enclosure. This enclosure features catalyzed urethane paint, Two color silk screening and overmolded brass threaded inserts.Analytical instrument featuring Design Octaves RIM components. Parts feature custom catalyzed urethane paint, molded in brass threaded inserts and hinge blocks. Two part Design Octaves analytical instrument featuring RIM base and RIM top shell. Parts feature two tone paint, overlay/label recesses and molded in brass threaded inserts.Six Part Life Sciences Enclosure manufactured with the Design Octaves RIM process featuring four color paint, EMI RFI shielding and molded in perforated logo for device venting and exhaust. Two part touch screen enclosure with overmolded stainless steel tubing for tilt adjustment system. Features silk screen decoration, EMI RFI shielding and catalyzed paint.Design Octaves RIM front, back top and cover featuring molded in hinge with clocked stainless steel axel, stainless standoffs and stainless threaded inserts. Large two part Design Octaves RIM enclosure featuring two tone paint and silk screen.Cancer treatment unit with covers featuring smooth catalyzed paint, laser cut sheet metal inserts and molded in threaded inserts. Medical Robot featured in a previous photo. Robot head features magnetic door molded with the Design Octaves RIM process.Entry control enclosure for national security market featuring two tone enclosure, silk screen logo, EMI/RFI shielding. Design Octaves tooling developed to produce 2 versions with features included or excluded on the inside and outside of enclosure. Rear view of Design Octaves produced national security entry control unit enclosure. Many mounting features are molded into the enclosure to reduce overall weight and parts required for assembly.Design Octaves RIM top cover for large medical device. This part features smooth catalyzed paint, overmolded inserts and EMI RFI shielding. Design Octaves RIM top cover for large medical device. This part features smooth catalyzed paint, overmolded inserts and EMI RFI shielding.Analytical Instrument cover featuring sliding door riding on CNC machined aluminum runners. Also, features interlock switch, two color silkscreen logo and two color catalyzed paint. Instrument cover featuring catalyzed paint, overmolded threaded inserts and silk screen decoration.Instrument over featuring catalyzed paint, overmolded threaded inserts and silk screen decoration. Cancer treatment unit cover featuring smooth catalyzed paint, laser cut sheet metal inserts and molding in threaded inserts.Medical cart top unit manufactured with Design Octaves RIM process. Injection Molded Touch Screen Bezel finished, painted and assembled by Design Octaves.Instrument bezel featuring catalyzed paint and molded in threaded brass inserts. Analytical Unit base manufactured utilizing the Design Octaves Reaction Injection Molding process. This unit features a molded in sheet metal bracket, molded in inserts and catalyzed paint.Analytical unit base manufactured utilizing the Design Octaves Reaction Injection Molding process. This unit features a molded in sheet metal bracket, molded in inserts and catalyzed paint. Design Octaves Reaction Injection Molded bezel featuring one color paint, EMI RFI shielding and injection molded lightpipe installed.Design Octaves Reaction Injection Molded bezel featuring one color paint, EMI RFI shielding and injection molded lightpipe installed.
